Hitachi - DCG306 & DCH306

Suits models: DCG306 DCH306
Honda Civic 1200 3/73-8/76 1.2L EB1
Honda Civic 1500 10/74-78 1.5L EC
Mazda 1000, 1200, 1300 3/66-2/77 1.0L 1.3LMazda 323 RWD 3/77-12/81 1.3L 1.4L TC UC
Mazda 808 Savanna 1972-76 1.6L NA
Mazda E1300, E1400 Van 5/78-5/81 1.3L 1.4L TC UC
Datsun 1/2ton pick-up 1981-84 1.2L A12
Datsun 1000, 1200 ute B20, B120 1967-85 1.0L 1.2L A10 A12
Datsun 1200, 120Y 1967-79 1.2L A12
Datsun Sunny B310 3/79-10/81 1.2L 1.5L A12 A15
Datsun Vanette C20 C120 4/79-86 1.2L 1.5L

This little fellow goes well when in good running order. Fitted to many vehicles with small engine capacities from 1L to 1.5L. They came in quite a few configurations ie. mechanical bobweight or vac secondaries, man/auto choke. Their main drawback is the use of a cork top gasket. They are very prone to shrinkage. Once the carby top is removed to make minor repairs to the internals it is very difficult to near impossible to re-use the cork gasket. This means a full aftermarket kit needs to be purchased to get a new gasket or possibly buy it new from the dealers.

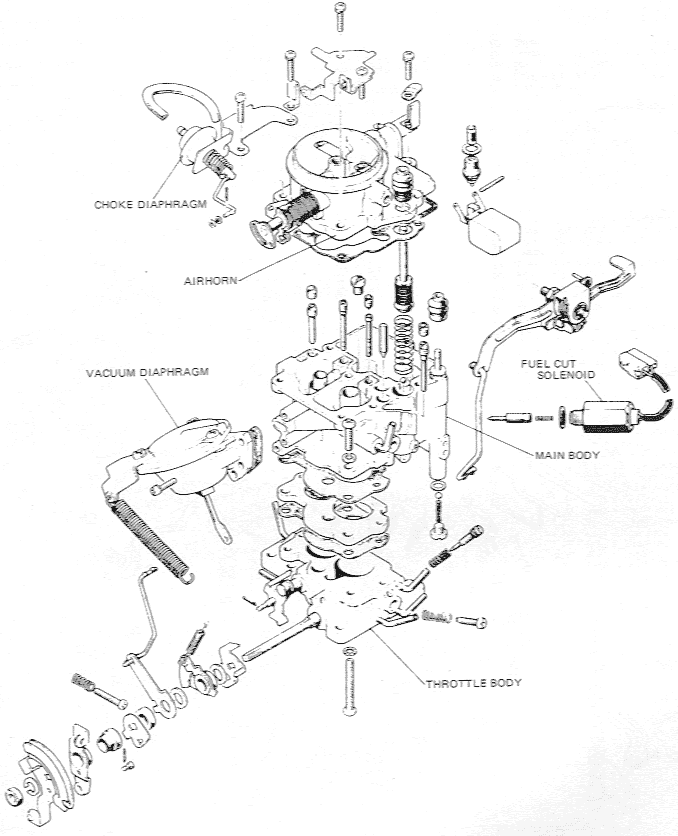

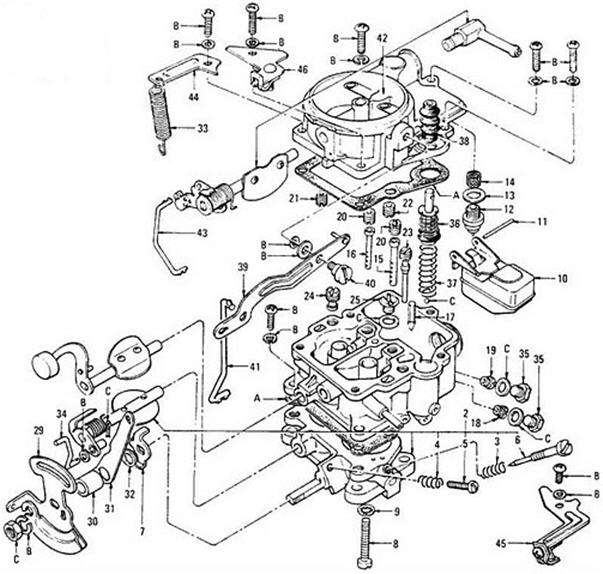

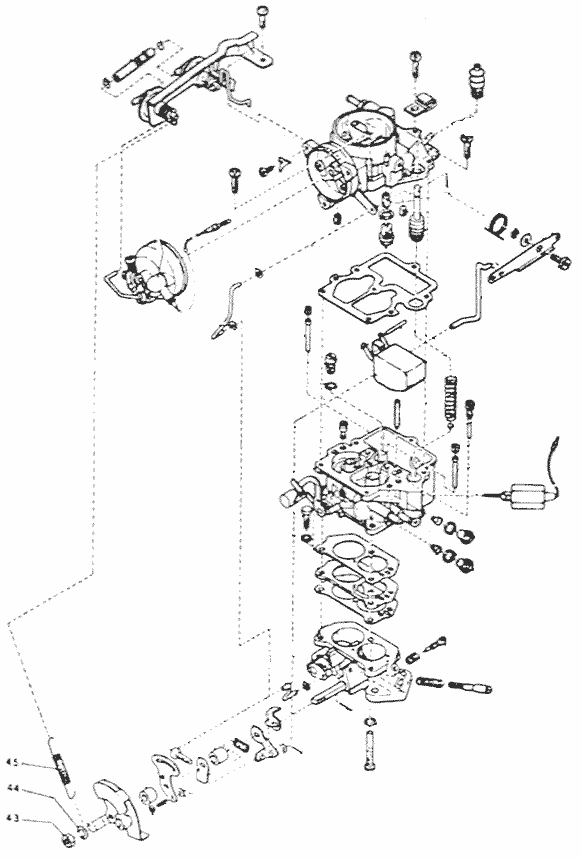

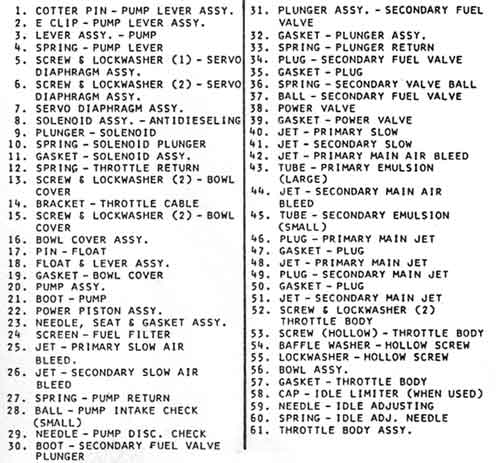

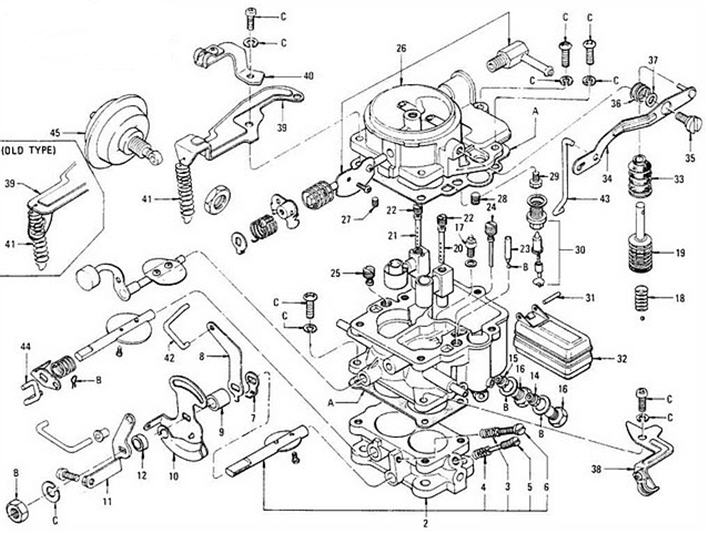

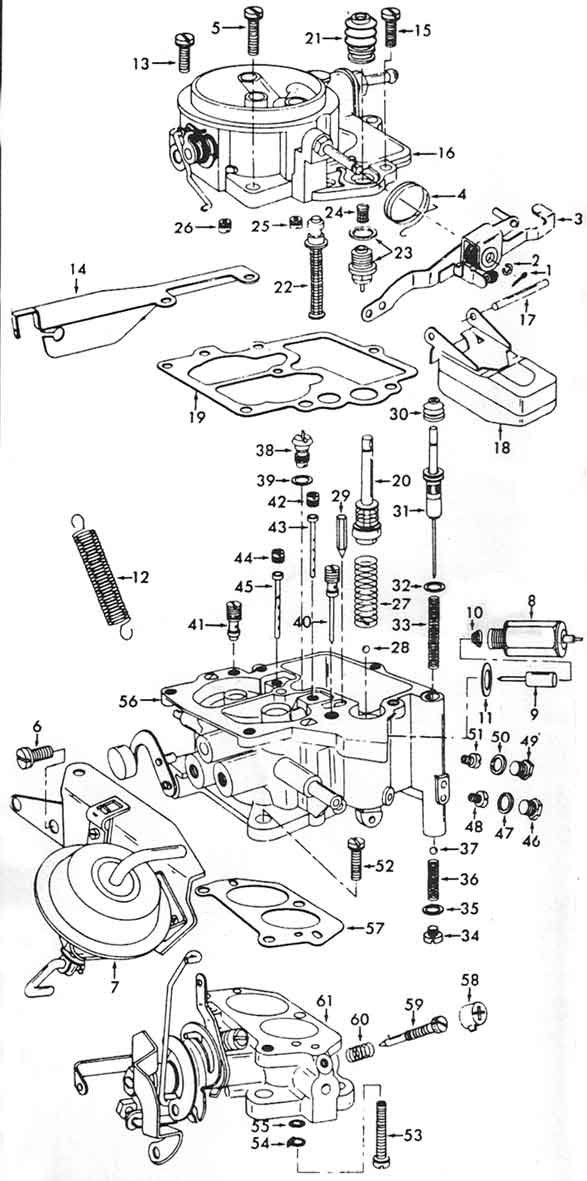

Other schematics showing the variations between models. The parts number list above do not match the schematics below.
