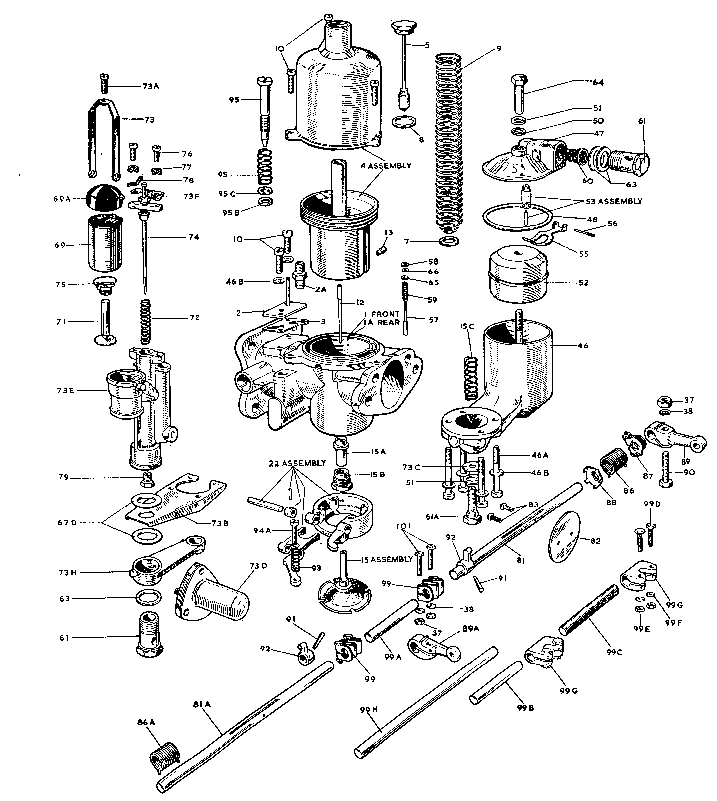

Item No.
|
Description
|
Item No.
|
Description
|
Item No.
|
Description
|
|
1 |
Body front |
48 |
Float chamber lid washer |
73B |
Bracket-thermostat attachment |
|
1A |
Body rear |
50 |
Serrated fibre lid washer |
73C |
Washer-fibre |
|
2 |
Adaptor-auto-ignition |
51 |
Aluminium lid washer |
73D |
Thermostat switch |
|
2A |
Union-auto-ignition |
52 |
Float |
73E |
Thermostat choke body assembly |
|
3 |
Gasket-adaptor-plate |
53 |
Needle and seat assembly |
73F |
Dust shield |
|
4 |
Suction chamber & piston assembly |
55 |

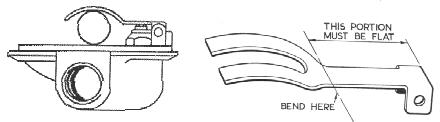

Float hinge lever |
73H |
Thermostat arm |
|
5 |
Oil cap damper assembly |
56 |
Float hinge lever pin |
74 |
Thermostat needle assembly |
|
7 |
Thrust washer-piston spring |
57 |
Piston lift pin |
75 |
Conical spring |
|
8 |
Washer-oil cap assembly |
58 |
Circlip-piston lift pin |
76 |
Screw-bridge plate |
|
9 |
Piston spring |
59 |
Spring-piston lift pin |
78 |
Spring finger |
|
10 |
Screw- suction chamber |
60 |
Filter |
79 |
Accelerator jet -thermostat |
|
12 |
Jet needle |
61 |
Banjo bolt |
81 |
Throttle spindle ( F C R ) |
|
13 |
Locking screw-jet needle |
61A |
Banjo bolt-float chamber |
82 |
Throttle
disc |
|
15 |
Jet diaphragm assembly |
63 |
Fibre washer |
83 |
Throttle disc screws |
|
15A |
Jet bearing |
64 |
Cap nut-float lid |
89 |
Throttle lever (brass) |
|
15B |
Jet bearing screw |
65 |
Washer-neoprene-piston lift pin |
90 |
Bolt (2 B.A.)-throttle lever |
|
15C |
Jet spring |
66 |
Washer-brass-piston lift pin |
91 |
Taper pin |
|
22 |
Jet housing assembly |
67D |
Fibre washer |
92 |
Throttle stop |
|
37 |
Nut (2B.A.)-throttle lever |
69 |
Solenoid (12 volt ) |
93 |
Spring-stop screw |
|
38 |
Washer-plain |
69A |
Moulded end cap |
94A |
Stop screw |
|
46 |
Float chamber ( F C R ) |
71 |
Plunger assembly |
95 |
Slow run adjusting valve |
|
46A |
Bolt-2 B.A. |
72 |
Spring-accelerator needle |
95A |
Gland spring |
| 46B |
Shakeproof washer |
73 |
Securing strap |
95B |
Solid neoprene gland washer |
| 47 |
Float chamber lid (F C R ) |
73A |
Clamp
screw-solenoid |
95C |
Brass dished washer |
