Suits models:

Apollo JK   8-89-7/91     2.0L

Toyota 4 runner YN63    7/84-12/88      2.2L  4YEC

Bundera RJ70     1/85-12/91      2.4L  22R

Camry SV22      9/89-6/91        2.0L  3FSC

Celica RA60, RA61, SA63     8/81-7/85         2.0L  21RC

Celica SA63      8/83-9/84       2.0L     2S-C

Corona  RT133      1/82/8/82       2.0L  21RC

corona ST141        8/83-4/87       2.0L  2SC

Dyna 100 YH81      11/85-01       1.8L  2YC

Hi-ace RZH103     10/89-9/98       2.4L  2RZ

Hi-Ace   YH50  YH51  YH60  YH61  YH71      1-83-9/89       1.8L  2.0L  2Y 3YC

Hi-Ace   YH53  YH63  YH73    10/86-9/89      2.2L  4YC

Hi-Lux  RN85  RN90  RN105     10/88-11/97     2.4L    22R

Lite-Ace  YM21  YM30  YM35    84-92     1.8L  2Y

Lite-Ace  YM40  YM41    3/86-9/88      2.0L    3YC

Tarago  YR20  YR21     3/84-10/90     2.0L   2Y  3YC

Corona ST150  FWD  (new Zealand)    84 on   1.8L  1SL

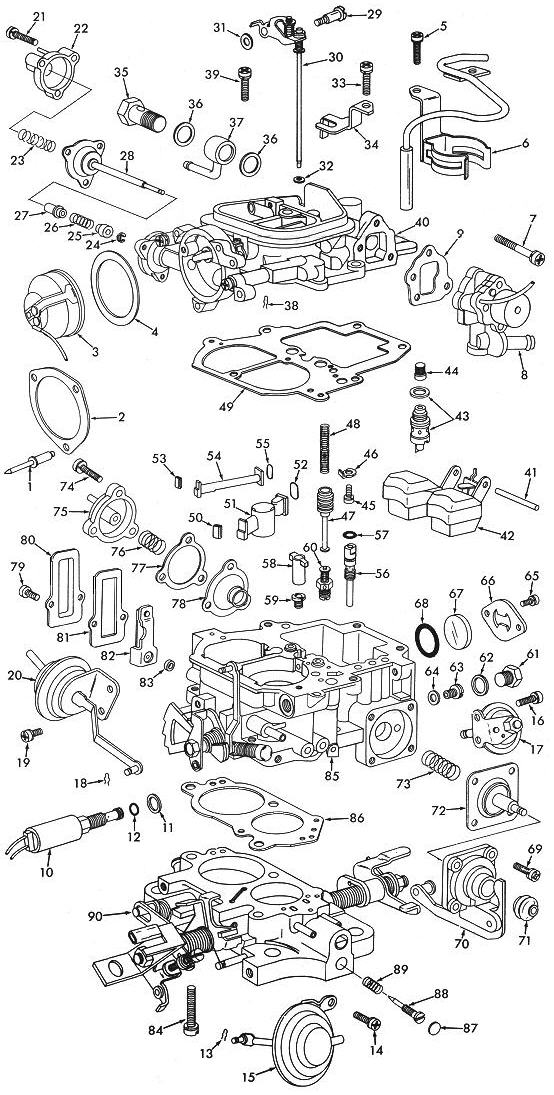

This carb is fitted to the vehicles listed to the left. It has a fair few parts so it is important to make yourself some sort of diagram noting where the major bits go, just in case you get them mixed up. When adjusting the float level, do a wet test ensuring you can see the fuel in the middle of the site glass through the retaining bracket #66.

With so many vehicle fitted with this carb there will be many variations to it. The one kit will fit all of them.
