Suits models:

Chrysler  Centura KC     4/77-78     4.0L

Chrysler  CL CM   11/76-6/81      3.5L  4.3L   215/265

Chrysler  CL CM   11/76-6/80      5.2L  V8    318ci

Valiant VK CK     11/75-6/76     5.2L   V8    318ci

Dodge  Phoenix   1960 on   5.2L   318ci

Dodge  Truck   1977 on    5.2L     318ci

Dodge Truck Hemi   1970 on      4.0L    245ci

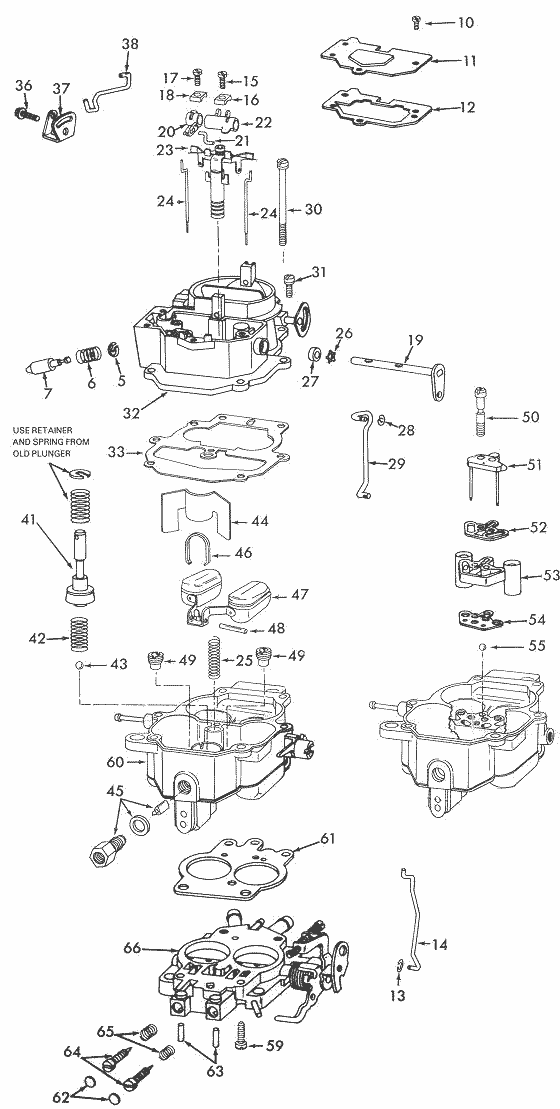

This carby was a good income stream for the carby rebuilder because these carbs proved to be a poor performer as far as service life between rebuilds go. Several rebuilds during their life would be required to keep them operating satisfactorily. The four long cover screws around the air horn were the biggest design fault causing the top and main body to warp substantially. These carbs can be straightened if done very carefully with a little heat applied. Most of the time it was more practical to fit a Holley 320 or 350 Holley. Adjusting the carby for good fuel economy is a little tricky. If you follow the instructions given in better quality carb kits then you are not far from the money. However over the years and with the use of a Dynomometer and gas analysis equipment the adjustment of the mixture can be improved. The adjustment is done by the linkage #22 and the allen screw adjuster in #23. I dare say no one will have the equipment for this task so paying a dyno tuner will be worth the money to have it done right. These carbs also have sealed mixture screws. These plugs should be taken out and discarded. This will allow you freedom of adjustment of the idle mixture. In saying that thou, you must be mindful of the fact that these were designed to burn lean as part of stricter regulations.
