Weber DCOE series carb illustrated

Weber DCOE

This carb is synonymous with performance and almost as good as fuel injection in its time. The carburettor is fully customisable with all the jets and venturi's able to be changed to suit whatever application you have in mind.

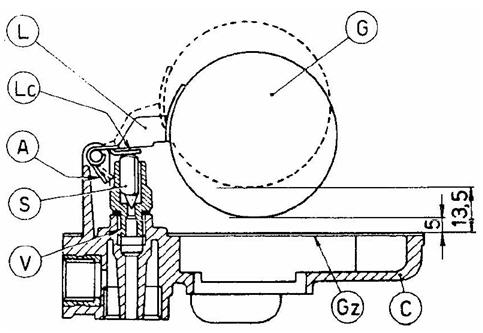

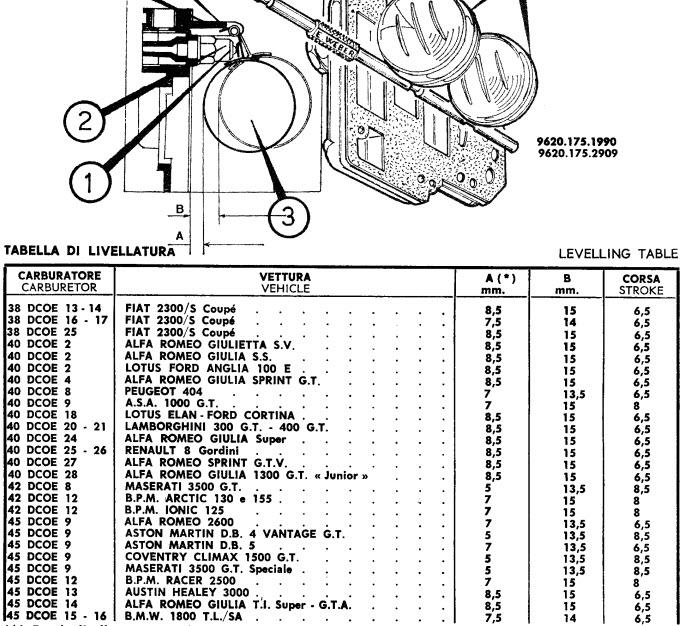

Setting float level is easily achieved. The the carb top over and lay as shown the the diagram, allowing the float to rest on the spring loaded needle and seat without compressing the ball bearing on the needle. If the ball compresses, tilt the top clockwise until the ball is not compressed. Now set the float level to 5mm as per dimensions. This is with the gasket Gz in place.

Tang Lc is bent to achieve the float height. Ensure you don't accidentally twist the tang.

Tang A is bent to achieve the float drop.

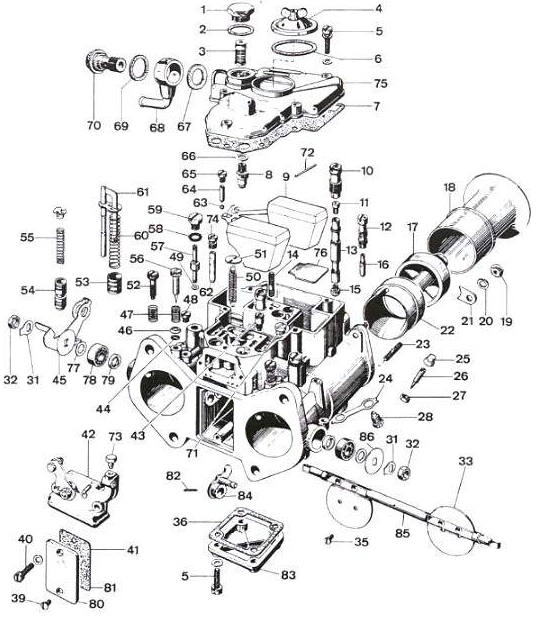

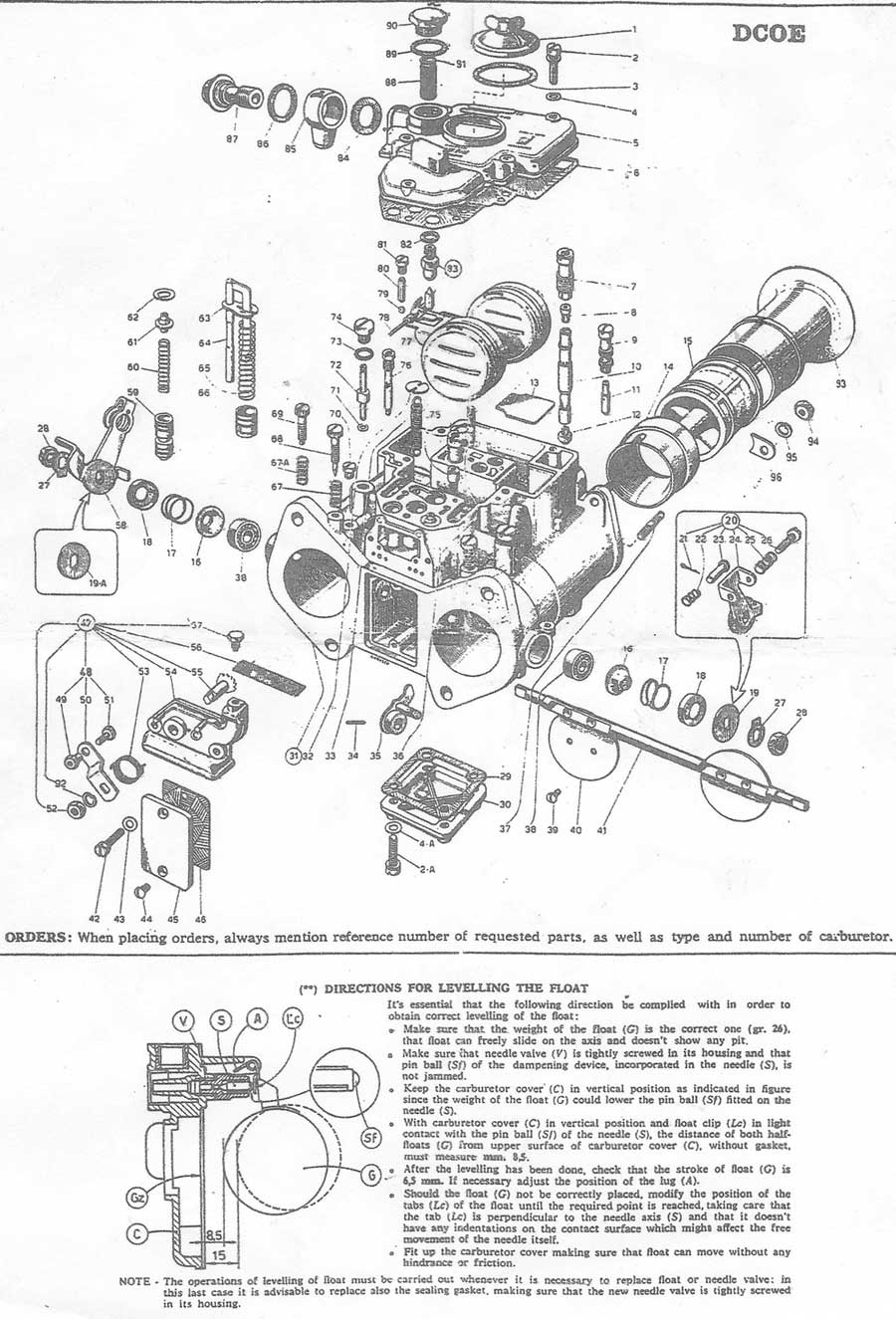

These dimensions are for the round float only, not for the new plastic one (item 9) as in the schematic below.

Item No.	Description	Item No.	Description	Item No.	Description
1	Filter Cover	28	Locking Screw ( x 2 )	60	Pump Rod Spring
2	Filter Cover	31	Lock Washer ( x 2 )	61	Pump Rod
3	Filter Element	32	Throttle Shaft Nut ( x 2 )	62	Starter Jet ( x 2 )
4	Jet Inspection Cover	33	Throttle Plate ( x 2 )	63	Pump Valve Ball ( x 2 )
5	Screw (x 9)	35	Throttle Plate Screw ( x 4 )	64	Stuffing Ball ( x 2 )
6	Jet Inspection Cover Gasket	36	Cover Gasket	65	Retaining Screw ( x 2 )
7	Top Cover Gasket	39	Screw ( x 2 )	66	Needle Valve Gasket
8	Needle Valve	40	Screw ( x 2 )	67	Fuel Union Gasket
9	Float (plastic)	41	Pump Cover Gasket	68	Fuel Union
10	Emulsion Tube Holder ( x 2 )	42	Cold Start Unit	69	Fuel Union Gasket
11	Air Corrector Jet ( x 2 )	43	Pump Exhaust Valve	70	Fuel Union Bolt
12	Idle Jet Holder ( x 2 )	44	Idle Mixture Screw "O" ring ( x 2 )	71	Inspection Cover ( x 2 )
13	Emuslion Tube ( x 2 )	45	Throttle Lever	72	Float Pin
14	Stud	46	Cup Washer ( x 2 )	73	Cable Clamp
15	Main Jet ( x 2 )	47	Spring ( x 3 )	74	Starter Air Jet ( x 2 )
16	Idle Jet ( x 2 )	48	Vacuum Screw (x 2 )	75	Top Cover
17	Auxillary Venturi ( x 2 )	49	Pump Jet Gasket ( x 2 )	76	Plate
18	Air Horn (x 2 )	50	Spring	77	Washer ( x 2 )
19	Air Horn nut ( x 4 )	51	Spring Plate	78	Bearing ( x 2 )
20	Washer ( x 4 )	52	Throttle Stop Screw	79	"O" ring ( x 2 )
21	Air Horn Tab ( x 4 )	53	Pump Plunger	80	Inspection Cover
22	Main Venturi ( x 2 )	54	Starter Valve ( x 2 )	81	Gasket
23	Stud ( x 4 )	55	Starter Valve Spring ( x 2 )	82	Pin
24	Lock Washer ( x 2 )	56	Idle Mixture Screw ( x 2 )	83	Cover
25	Cap ( x 2 )	57	Pump Jet ( x 2 )	84	Pump Cam
26	Air Bypass Screw ( x 2 )	58	Pump Jet Oring ( x 2 )	85	Throttle Shaft
27	Lock Nut ( x 2 )	59	Pump Jet Cover ( x 2 )	86	Washer
